Spotlight on Tricia Royle, Senior Program Coordinator

This occasional series focuses on members of the Frontier Fields team.  It highlights the individuals, their jobs, and the paths they took to get to where they are today.

Portrait of Tricia Royle

Tricia Royle, senior program coordinator, answers questions about her role on the Frontier Fields program and the path she took to get there.

What does a typical day on the job entail? What are your responsibilities?

When astronomers are granted time on Hubble, their program is assigned to a program coordinator to make sure the observations are feasible and schedulable on the telescope. When problems occur any time between acceptance and execution, it’s the program coordinator who helps get problems resolved. We act as liaisons between the various groups at the Space Telescope Science Institute (STScI) — science, operations, scheduling — and the observers — principal investigators and co-investigators. I tend toward the large-scale and long-term observations like Frontier Fields.

What specifically is your educational background?

I have a BSc in physics and astronomy from York University in Toronto, Ontario, Canada, and I have taken postgraduate courses in applied physics from Johns Hopkins University in Baltimore, Maryland.

What particularly interested you in school or growing up?  What were your favorite subjects?

I wasn’t particularly good at school in the early years and didn’t like the monotony of memorizing multiplication tables or writing out spelling words. In grade six, when the curriculum started to get interesting and turn more logic-based, I started to pay attention and actually enjoyed just about every class — except history, which still had too much memory work. In high school, it became clear that math and science were my favorites, though I still took a lot of English and arts courses because I enjoyed the creativity involved.

Tricia Royle poses with an astronaut at Kennedy Space Center.

Nineteen-year-old Tricia on her fifth or sixth trip to Kennedy Space Center in Florida. Tricia recalls, “It was pretty much the first place I asked to go every time I’d go to Florida. Eventually, my family just accepted it as higher priority than Disney World.”

How did you first become interested in space?

Growing up in a very rural area about an hour outside of Toronto, surrounded by farms and no streetlights, I had always been able to see the Milky Way, but I didn’t know much about what I was seeing. When I first read that our sun was a star and figured out that meant every star I was seeing was potentially someone else’s “sun,” it was pretty humbling. I wasn’t very old and I’m pretty sure I annoyed a lot of aunts and uncles with my new-found “discovery” that our sun is actually a star. I didn’t understand how they could talk about anything else if they knew how many suns there were in the sky! Weather and gas prices just didn’t seem important enough to warrant discussion when compared to my new sun/star revelation.

Was there someone or something that influenced you in developing a love for what you do, or the program you’re a part of? Was there a particular event that especially captured your imagination and led to life changes?

A lot of things happened when I was in my pre-teens and teenage years to push me toward space. I remember feeling intense sadness and disbelief after the Challenger disaster. I was in middle school, just starting to enjoy learning, and had a hard time dealing with the idea that a teacher who was supposed to go into space, then come back to share her experience with her classroom and other classrooms, now wasn’t coming back at all. I hadn’t realized before then how dangerous it was to launch a shuttle and couldn’t see past the loss of those seven astronauts to understand why anyone would take that risk.

A year or so later, Star Trek: The Next Generation came on TV, and it all started to make sense. I loved the scientific language and ideas in the show and the notion of “going where no one had gone before.” Traveling around on the Enterprise seemed like a dream come true, and I started to understand why someone would put everything at risk to go into space. Star Trek: The Next Generation was my first exposure to positive science fiction — not just doomsday aliens and robots — and it introduced me to the concept of just how much more might be out there and what might be possible. Hubble launched a few years after that, when I was in high school, and started sending back incredible images of real things that were actually out there, waiting to be found. It seemed to me that maybe a bit of the show was coming to life and I wanted to know more.

When it came time to choose a topic for my first high school term paper — it happened to be advanced chemistry — I decided it was a good excuse to find out more about all those suns/stars I had seen in the sky as a child, on Star Trek for the past four or five seasons and now coming down from Hubble. This seemed like a really good idea until my 10-page report was closer to 30 pages, and I still had several books to go through. Thankfully, I had a wonderful chemistry teacher who encouraged me to delve as deep as I wanted into the topic, but to choose something specific to keep the final paper under 15 pages so she could finish reading it in an evening. I chose to focus on the life cycle of stars, and that was the beginning of my intense curiosity about the science of space and the universe.

Tricia Royle posing at the sign at the entrance to Kennedy Space Center.

On a later trip, 21-year-old Tricia poses at the entrance to Kennedy Space Center.

How did you first get started in the space business?

The summer after my third year at York University, I worked with Dr. John Caldwell analyzing Hubble data on the low-mass stellar companions of larger stars. During that summer, he visited STScI and Johns Hopkins University to attend a conference and meet with his collaborators. I was invited to tag along. I imagine I looked a little — or a lot — lost and awkward standing among seasoned Hubble scientists and STScI employees in the auditorium after a talk. Fortunately, one of the Hubble data analysts took pity on me and invited me into her conversation. Lisa Frattare — now part of Hubble Heritage — became an instant friend and would later encourage me to apply to work at STScI after graduation.

I didn’t take her seriously, thinking there was no way a fresh-out-of-school job could be with something as huge as Hubble. But on a dare with one of my college roommates, we both applied for our unattainable dream jobs — I applied to STScI and he applied for a coaching job at the University of Hawaii. As luck would have it, I got an interview and came to work at STScI shortly after graduation as a program coordinator. Sadly, my roommate did not make it out to Hawaii.

Before I left York University, Dr. Caldwell described my new position at STScI as “the hot seat of astronomy,” which ended up being an understatement. Immediately after I started, I was working with and attending conferences with scientists I’d seen listed in textbooks. In my first two years, I had the opportunity to work with the Director of STScI — Robert Williams — and many others on the Hubble Deep Field to push the science limits of the telescope, and to join Lisa Frattare and Keith Noll on the Hubble Heritage Project to help make beautiful images from Hubble’s scientific data. I worked with Hubble Heritage for five years and still think it is one of those really great initiatives that highlights for everyone, not just scientists, what Hubble can do. All in all, not a bad start to a career in space.

What do you think of the Hubble results, or the impact that Hubble has on society?

 I think people have started to take for granted the amazing images Hubble continues to allow scientists to take. It’s been up there for almost 26 years, which means there are a lot of kids and even adults who don’t know what it’s like to NOT have these observations sent down on a regular basis, or what it was like before Hubble helped solve some of the fundamental questions about the expansion of the universe and what is out there. I have two school-aged kids who just assume that Hubble has or will answer any question they may have about stars or galaxies. I don’t think it occurs to them that Hubble hasn’t always been and won’t always be around to do that.

The fact that it is such an ingrained part of the scientific and academic community says just how successful it has become. It’s like the Internet – it’s hard to remember what it was like before we had this way to find answers to our questions. I suspect Hubble’s archives and legacy programs will continue to provide answers, or trigger new questions, for a long time yet.

Is there a particular image or result that fascinates you?

The Ultra Deep Field, or UDF. I found out I was pregnant with my first child just after I started working as program coordinator for the UDF, and the UDF images were released while I was still in the hospital after delivering my daughter — so I will forever tie those two events together. But more than that, I still use the UDF image in my presentations, even though it is almost 12 years old, because it fascinates everyone who learns what they are really looking at. I ask people to look at that image and realize that what they are seeing aren’t individual stars, but galaxies. Then I ask them to keep in mind that this particular piece of sky was chosen because it was “boring,” and to further consider that everything they are seeing is contained within a patch of sky the size of the president’s eye on a dime, held at arm’s length. More than a few jaws drop at the implication. Seeing the UDF image triggers that realization in people, especially kids, of just how vast the universe must be easily makes the UDF my favorite.

Are there specific parts of the program that you’re especially proud to have contributed to?

I like the view from where I sit in Operations. I like watching a Hubble program develop from the initial science outline in the Phase 1, to a workable Phase 2, to a successfully executed set of observations. I especially love the large and multi-cycle programs — 47 Tuc, Hubble Deep Field, Ultra Deep Field, Andromeda, CANDELS, and now Frontier Fields. They allow me to work with people who have such a passion for what they do on these in-depth programs and challenge me to find new ways to get them the science they need.

Because repeat observers are assigned, when possible, to the same program coordinator each time they observe, that working relationship has a chance to grow cycle after cycle. Program coordinators tend to get very attached to the scientists they work with multiple times. I’ve been here since Cycle 6 and now we’re ramping up for Cycle 24, so the list of observers I claim as mine is pretty long, and I feel very protective of them and their observations, even if they’ve moved on to other program coordinators or even other telescopes.

What outside interests could you share that would help others understand you better?

A lot of what we do on Hubble can feel abstract and intangible, since we can’t actually go to the telescope or out in space to touch what we observe — so I like to do things that produce more tangible, immediate results. In addition to my love of reading and watching sci-fi TV shows, I do a lot of crafts to create something I can hold in my hand.

With most of my observers scattered around the country and internationally, I rarely see them in person. Giving talks about Hubble to schools and the more general public lets me connect the science to people. Being able to explain a Hubble image to someone without a science background and make it real for them, helps put into perspective that what I do at work on a daily basis can be inspiring and has results beyond the image itself. I want what we do at STScI and on Hubble to show people they can dream as big as they like because the universe is big enough to handle it.

Is there anything else that you think is important for readers to know about you?

I was one of only four female physics and astronomy majors in my first year at York University. Before classes even started, my academic advisor suggested that I might want to choose something easier than physics and astronomy, despite coming in with an A+ average in high school and scoring in the top 5 percent on the math assessment. Male classmates with B averages were not given the same suggestion to find an easier major.

In the years ahead, every test grade of mine that fell below an A – there weren’t many – brought up the question from others, and myself, as to whether I really should be there, whether I was good enough. It was a constant fight to prove to classmates, professors and myself that I deserved to major in physics and astronomy. It wasn’t enough that I wanted to be there and was passing my courses – I had to excel. Four of us started, but I was the only female graduate in physics and astronomy in my year.

I have a daughter and a son, still relatively young, but they’re starting to look at what they want to do when they finish school. Obviously I want them to do well, but my wish for both of them, and anyone else looking at what to do in their life, is that in whatever field they choose, they know that wanting to be there is enough and they don’t have to prove to anyone they deserve to follow their dreams.



Also see “Spotlight on Jennifer Mack, Research and Instrument Scientist
and “
Spotlight on Dan Coe, ESA/AURA Astronomer

Spotlight on Jennifer Mack, Research and Instrument Scientist

This occasional series focuses on members of the Frontier Fields team.  It highlights the individuals, their jobs, and the paths they took to get to where they are today.

This is a picture of Jennifer Mack, a Hubble Research and Instrument Scientist.

Jennifer Mack, a Hubble Research and Instrument Scientist, answers questions about her role on the Frontier Fields project.

What is your position?

My formal title is Research & Instrument Scientist in Hubble Space Telescope’s Instruments Division. I help manage the Frontier Fields data pipeline, which delivers the best possible calibrated data products to the astronomical community. I am also part of the WFC3 [Wide Field Camera 3] Instrument team where I work on calibration of the UVIS [ultraviolet and visible light] and IR [infrared light] detectors.

What is a “data pipeline” and what does it mean to “calibrate”?

A data pipeline is a set of software for processing and combining sets of images. It includes tools to correct for instrument artifacts, such as bad pixels, thermal signal from the detectors, and variations in sensitivity across the field of view. The goal of calibration is to tie the brightness of objects measured in Hubble’s cameras to some absolute system, based on measurements of stars of known brightness.

What does a typical day on the job entail? What are your responsibilities?

The data pipeline team keeps an eye on the Frontier Fields images as they are arriving from the telescope. For a given cluster, these come in a steady stream over a period of about 6 weeks, so we have to keep on top of things. First and foremost we need to be sure that the telescope was pointing in the right place and that it was stable throughout the exposure.

We also develop software to correct the images for artifacts that aren’t automatically handled by Hubble’s standard calibration pipeline. This includes masking out artifacts like satellite trails or scattered light from bright stars. We also mask IR ‘persistence’ which is leftover signal from very bright objects in observations taken just prior to ours. For the IR detector, we correct the images for stray light, usually from the bright Earth, that varies with time over the course of an exposure. For the ACS [Advanced Camera for Surveys] detector, we correct for artifacts like hot pixels and charge transfer losses during readout, both of which are considerable after being in space for 13 years.

Once that is complete, we correct the images for distortion and align them. These are then stacked together to create full-depth mosaics for each filter using specialized software called AstroDrizzle which allows us to optimize the resolution of the final images.

What specifically is your background?

I have a BS in physics and an MS in astrophysics. I’ve been at Space Telescope since 1996, and over the years have helped calibrate Hubble’s main imaging cameras: WFPC2 [Wide-Field Planetary Camera 2], ACS, and now WFC3.

What particularly interested you in school or growing up?  What were your favorite subjects?

I was particularly interested in science and math in high school. I remember in physics class we had to predict the landing spot of a marble rolled down an inclined plane and off of the side of a table. Measuring only the height of the incline, the height of the table, and the time the marble was in the air, we were able to calculate where on the floor the marble would land and then put a paper cup there to catch it. I was amazed that this actually worked and was struck by the power of mathematics to predict events which seemed like magic to me.

How did you first become interested in space?

My birthday coincides with the peak of the Perseid meteor shower. This is a particularly spectacular event in southwest Colorado where I grew up, and when I was little I asked my mom if the meteors were special for my birthday. She cleverly told me that they must be, and that felt very magical to me. When I got older, friends and I would hike to the top of a mountain and lay back to get a full view of the night sky. As the meteors streaked across the sky, we would imagine that we were clinging to the side of the Earth, spinning at 1000 miles/hour, and trying not float away into space. Growing up under really dark skies really sparked my curiosity about space and made me think about all the mysteries still undiscovered.

Was there someone (parent, teacher, spouse, sibling, etc.) or something (book, TV show, lecture etc.) that influenced you in developing a love for what you do, or the program you’re a part of?

When I was young, I asked a lot of questions and especially wanted to understand how and why things worked. My parents never said “I don’t know,” but took the time to show me how to find answers, either in books or on the computer. We watched a lot of nature documentaries together, including the original Cosmos series which resulted in a lot of interesting discussions. My parents really listened to my questions and as a result instilled in me a general curiosity and love of learning.

Is there a particular image or result that especially fascinates you?

I’ve always been fascinated by galaxy clusters, and the Frontier Fields images are pushing the limits of HST’s instruments to the extreme. By combining very deep exposures with the power of a gravitational lens, we are able to look back even further in time to view galaxies when the Universe was only 500 million years old. When you create very deep images like these, limitations in the current instrument calibration become apparent. We are developing new techniques to do cutting-edge calibration and sharing these new methods with the user community in the hope of allowing for the best possible science with HST. It’s exciting to be a part of all this new discovery!

Are there specific parts of the program that you’re particularly proud to have contributed to?

In addition to my Frontier Fields work, I’m proud to be a member of the Hubble Heritage Team, which produces some of the most iconic astronomy images ever. These images are designed specifically for the purpose of inspiring people, and I think that is an especially worthy pursuit! My specialty is in understanding Hubble’s instruments, and I work on designing the observations and also in calibrating and aligning the images once they have been acquired. Some recent mosaics I’ve had the pleasure of working on include hits like the Eagle Nebula, Westerlund 2, the Monkey Head Nebula, and the Horsehead Nebula.

Is there anything else that you think is important for readers to know about you?

I have a 5-year-old son who loves space and especially playing Lego “Hubble Rescue” to reenact the servicing missions. One of his more memorable quotes: “Hey mom, how about this time I be Mike Massimino and you be John Grunsfeld!” Being able to share my passion for astronomy with my son has been especially rewarding. [Editor’s note: Mike Massimino performed spacewalks on two Hubble servicing missions, and John Grunsfeld is a spacewalking veteran of three Hubble servicing missions.]

This picture shows Jennifer Mack enjoying time  with her son in a field in Colorado.

Jennifer Mack enjoying time in Colorado with her son.

 For more information on the processing of Hubble images, please see these posts:

For more information on how Hubble images are proposed, planned, and scheduled, please see these posts:

MACS J0416 Data is Complete

Observations of another Frontier Fields galaxy cluster and parallel field are complete. This time, we have new images for you of MACS J0416.1-2403. Here’s the galaxy cluster:

macs

And here is the parallel field:

 macs2

Beautiful, aren’t they? This is the second Frontier Fields cluster and parallel field to be fully imaged. You can see the first here.

Remember that to maximize scientific discovery, Hubble is using two of its instruments simultaneously to examine both the cluster and the parallel field, then observing the same areas again with the instruments switched.

Hubble takes two sets of observations, called epochs, in order to thoroughly examine the two areas. During the first, Hubble spent 80 orbits with the Advanced Camera for Surveys (ACS) pointing at the main galaxy cluster, and Wide Field Camera 3 (WFC3) looking at the parallel field. ACS provides a visible-light view, and WFC3 adds near-infrared light.

During the second epoch, Hubble spent 70 orbits targeting WFC3 on the main cluster and ACS on the parallel field.

Scientists are poring over the new data, and one result is already in. Expect to hear more about these observations in the near future.

How Hubble Observations Are Scheduled

This is the third in a three-part series.

After observing time is awarded, the Institute creates a long-range plan. This plan ensures that the diverse collection of observations are scheduled as efficiently as possible. This task is complicated because the telescope cannot be pointed too close to bright objects like the Sun, the Moon, and the sunlit side of Earth. Adding to the difficulty, most astronomical targets can only be seen during certain months of the year; some instruments cannot operate in the high space-radiation areas of Hubble ’s orbit; and the instruments regularly need to be calibrated. These diverse constraints on observations make telescope scheduling a complex optimization problem that Institute staff are continually solving, revising, and improving.”

Preparing for an observation also involves selecting guide stars to stabilize.the telescope’s pointing and center the target in the instrument’s field of view. The selection is done automatically by the Institute’s computers, which choose two stars per pointing from a catalog of almost a billion stars. These guide stars will be precisely positioned within the telescope’s fine guidance sensors, ensuring that the target region and orientation of the sky is observed by the desired instrument.”]

A weekly, short-term schedule is created from the long-range plan. This schedule is translated into detailed instructions for both the telescope and its instruments to perform the observations and calibrations for the week. From this information, daily command loads are then sent from the Institute to NASA’s Goddard Space Flight Center to be uplinked to Hubble.

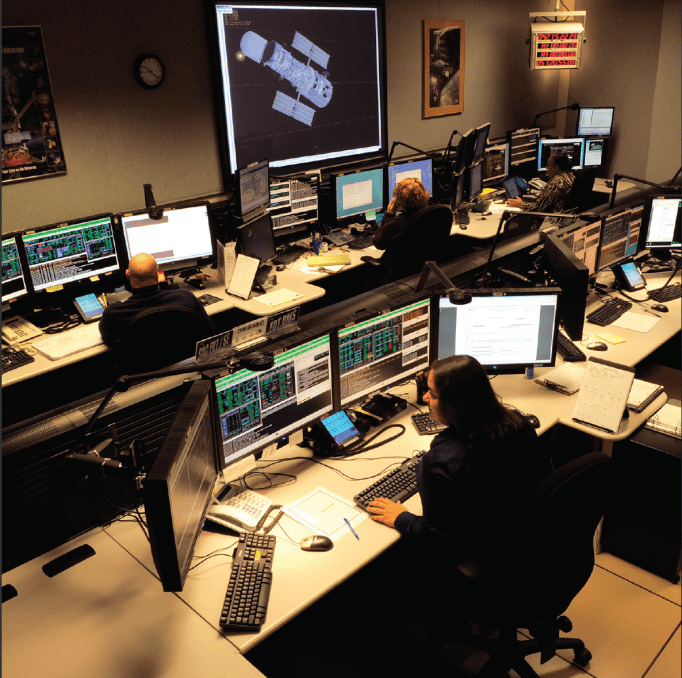

Hubble’s Flight Operations Team resides in the Space Telescope Operations Control Center at NASA’s Goddard Space Flight Center in Greenbelt, Md.  In addition to monitoring the health and safety of the telescope, they also send command loads to the spacecraft, monitor their execution, and arrange for transmission of science and engineering data to the ground.

Hubble’s Flight Operations Team resides in the Space Telescope Operations Control Center at NASA’s Goddard Space Flight Center in Greenbelt, Md. In addition to monitoring the health and safety of the telescope, they also send command loads to the spacecraft, monitor their execution, and arrange for transmission of science and engineering data to the ground.

The journey from proposal through selection and scheduling culminates in the email informing astronomers that their data is ready to be accessed. Usually, the process takes more than a year from idea to data—sometimes even longer. Of course, that’s when the real work begins—the analysis of the data and the hard work of uncovering another breakthrough Hubble discovery!

How Hubble Observations Are Planned

This is the second in a three-part series.

Researchers awarded telescope time based on the scientific merit of their Phase I proposal must submit a Phase II proposal that specifies the many details necessary for implementing and scheduling of the observations. These details include such items as precise target locations and the wavelengths of any filters required.

Once an observation has occurred, the data becomes part of the Hubble archive, where astronomers can access it over the Internet. Most data is marked as proprietary within the Institute computer systems for 12 months. This protocol allows observers time to analyze the data and publish their results. At the end of this proprietary-data-rights period, the data is made available to the rest of the astronomical community. (Most of the very large programs, such as Frontier Fields, have given up proprietary time as part of their proposal.)

This is a view of the many computers that are part of the Barbara A. Mikulski Archive for Space Telescopes (MAST), located at the Space Telescope Science Institute (STScI) in Baltimore, Md. The archive is named in honor of the United States Senator from Maryland for her career-long achievements and becoming the longest-serving woman in U.S. Congressional history. MAST is NASA’s repository for all of its optical and ultraviolet-light observations, some of which date to the early 1970s. The archive holds data from 16 NASA telescopes, including current missions such as the Hubble Space Telescope and Kepler. Senator Mikulski is in the center, STScI Director Matt Mountain at her right, and STScI Deputy Director Kathryn Flanagan at her left. The plaque to image right is a photo of Supernova Milkuski, an exploding star that the Hubble Space Telescope spotted on Jan. 25, 2012. It was named in honor of the Senator by Nobel Laureate Adam Riess and the supernova search team with which he is currently working. The supernova, which lies 7.4 billion light-years away, is the titanic detonation of a star more than eight times as massive as our Sun.

This is a view of the many computers that are part of the Barbara A. Mikulski Archive for Space Telescopes (MAST), located at the Space Telescope Science Institute (STScI) in Baltimore, Md. The archive is named in honor of the United States Senator from Maryland for her career-long achievements and becoming the longest-serving woman in U.S. Congressional history. MAST is NASA’s repository for all of its optical and ultraviolet-light observations, some of which date to the early 1970s. The archive holds data from 16 NASA telescopes, including current missions such as the Hubble Space Telescope and Kepler. Senator Mikulski is in the center, STScI Director Matt Mountain at her right, and STScI Deputy Director Kathryn Flanagan at her left. The plaque to image right is a photo of Supernova Milkuski, an exploding star that the Hubble Space Telescope spotted on Jan. 25, 2012. It was named in honor of the Senator by Nobel Laureate Adam Riess and the supernova search team with which he is currently working. The supernova, which lies 7.4 billion light-years away, is the titanic detonation of a star more than eight times as massive as our Sun.

Along with their Phase II proposal, observers can also apply for a financial grant to help them process and analyze the observations. These grant requests are reviewed by an independent financial review committee, which then makes recommendations to the Institute director for funding. Grant funds are also available for researchers who submit Phase I proposals to analyze non-proprietary Hubble data already archived. The financial committee evaluates these requests as well.

Up to 10 percent of Hubble ’s time is reserved as director’s discretionary time and is allocated by the Institute director. Astronomers can apply to use these orbits any time during the course of the year. Discretionary time is typically awarded for the study of unpredictable phenomena such as new supernovae or the appearance of a new comet. Historically, directors have allocated large percentages of this time to special programs that are too big to be approved for any one astronomy team. For example, the observations of the Frontier Fields use director’s discretionary time.

In my last post, I talked about how observations are proposed.  In my next post, I will talk about how observations are scheduled.

How Hubble Observations Are Proposed

This is the first in a three-part series.

Time on the Hubble Space Telescope is a precious commodity. As a space telescope, Hubble can observe 24 hours a day, but its advantageous perch also attracts a large number of astronomers who want to use it. The current oversubscription rate—the amount of time requested versus time awarded—is six to one.

The process of observing with Hubble begins with the annual Call for Proposals issued by the Space Telescope Science Institute to the astronomical community. Astronomers worldwide are given approximately two months to submit a Phase I proposal that makes a scientific case for using the telescope. Scientists typically request the amount of telescope time they desire in orbits. It takes 96 minutes for the telescope to make one trip around the Earth, but because the Earth usually blocks the target for part of the orbit, typical observing time is only about 55 minutes per orbit.

Longer observations require a more compelling justification since only a limited number of orbits are available. Winning proposals must be well reasoned and address a significant astronomical question or issue. Potential users must also show that they can only accomplish their observations with Hubble ’s unique capabilities and cannot achieve similar results with a ground-based observatory.

The Institute assembles a time allocation committee (TAC), comprising experts from the astronomical community, to determine which proposals will receive observing time. The committee is subdivided into panels that review the proposals submitted within a particular astronomical category. Sample categories include stellar populations, solar system objects, and cosmology. The committee organizers take care to safeguard the process from conflicts of interest, as many of the panel members are likely to have submitted, or to be a co-investigator, on their own proposals.

The time allocation committee (TAC) discusses which proposals will receive observing time on Hubble.

The time allocation committee (TAC) discusses which proposals will receive observing time on Hubble.

Proposals are further identified as general observer (GO), which range in size from a single orbit to several hundred, or snapshot, which require only 45 minutes or less of telescope time. Snapshots are used to fill in gaps within Hubble ’s observing schedule that cannot be filled by general observer programs. Once the committee has reviewed the proposals and voted on them, it provides a recommended list to the Institute director for final approval.

In my next post, I will discuss how observations are planned.

Hubble Observations: From the Ground to Your Computer

This post is the second in a two-part series.

In my last post, “Hubble Observations: From the Sky to the Ground,” I wrote about the route Hubble images take as they are digitally transferred from space to the ground.

This is the story of what happens after that data makes the 30-mile trip over land-lines from NASA’s Goddard Space Flight Center in Greenbelt, Md., to the Space Telescope Science Institute in Baltimore, Md., and ultimately to your computer as iconic Hubble pictures.

Hubble generates approximately 855 gigabytes of new science data each month. That’s the equivalent of an 8,550-yard-long shelf of books. Astronomers, in turn, typically download six terabytes of data monthly from this growing archive. That would be the equivalent of the printed paper from 300,000 trees. By the beginning of April 2014, Hubble data had been used to publish more than 12,000 peer-reviewed scientific papers.

The raw Frontier Fields data are available to the public immediately from a repository called the Barbara A. Mikulski Archive for Space Telescopes, or MAST. However, these data are not the beautiful, color Hubble images we have come to know and love. Raw images from the telescope are black and white, and include distortions introduced by the instruments, as well other unwanted artifacts from Earthshine, occasional Earth-orbiting satellite trails, bad pixels, and random hits by small, charged particles called cosmic rays.

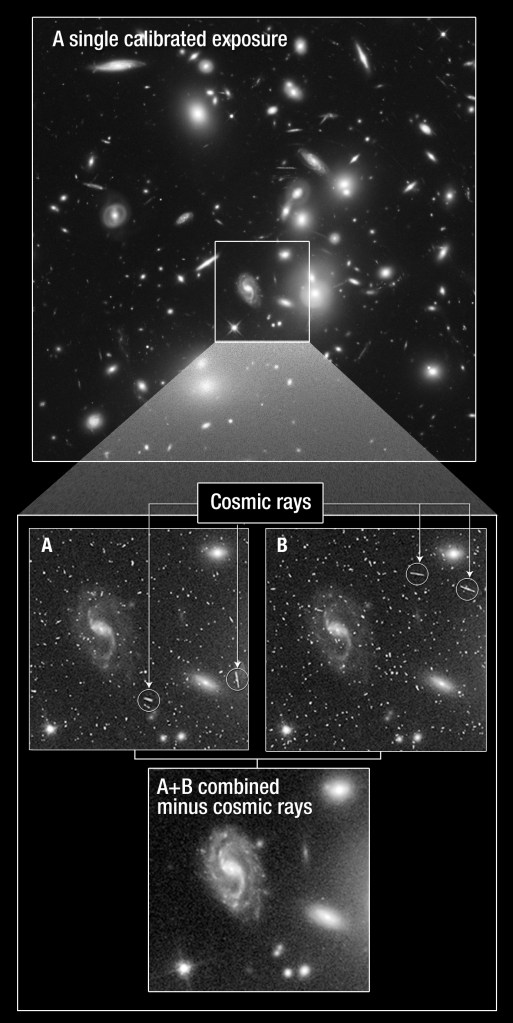

Cosmic ray signatures are removed by combining two exposures in a way that removes everything not in both images. Credit: NASA, ESA, and J. Lotz, M. Mountain, A. Koekemoer, the HFF Team, and Ann Feild (STScI).

Cosmic ray signatures are removed by combining two exposures in a way that removes everything not in both images. Credit: NASA, ESA, and J. Lotz, M. Mountain, A. Koekemoer, the HFF Team, and Ann Feild (STScI).



It takes a team of about a dozen instrument analysts to “clean” these images by removing the distortions and artifacts. The refined images are posted once a week on MAST. These are the combination of multiple exposures taken in seven different filters, which allow light at specific wavelengths to enter the instruments.

Hubble’s instruments have many filters. The Frontier Fields observations use four in infrared from the Wide Field Camera 3 (WFC3), and three in visible light from the Advanced Camera for Surveys (ACS). The final, deep, combined color image for each Frontier Field will have a total of 560 exposures, divided evenly between the main cluster and its parallel field.

To produce a color picture, exposures from the seven filters are assigned the three primary colors of blue, green, and red based on their wavelengths.  Images from the shortest, bluest wavelengths are assigned to blue, while images from the longest, reddest wavelengths are assigned to red, and intermediate wavelengths are assigned to green. These primary color images are then composited to produce the full-color picture so familiar to Hubble followers.

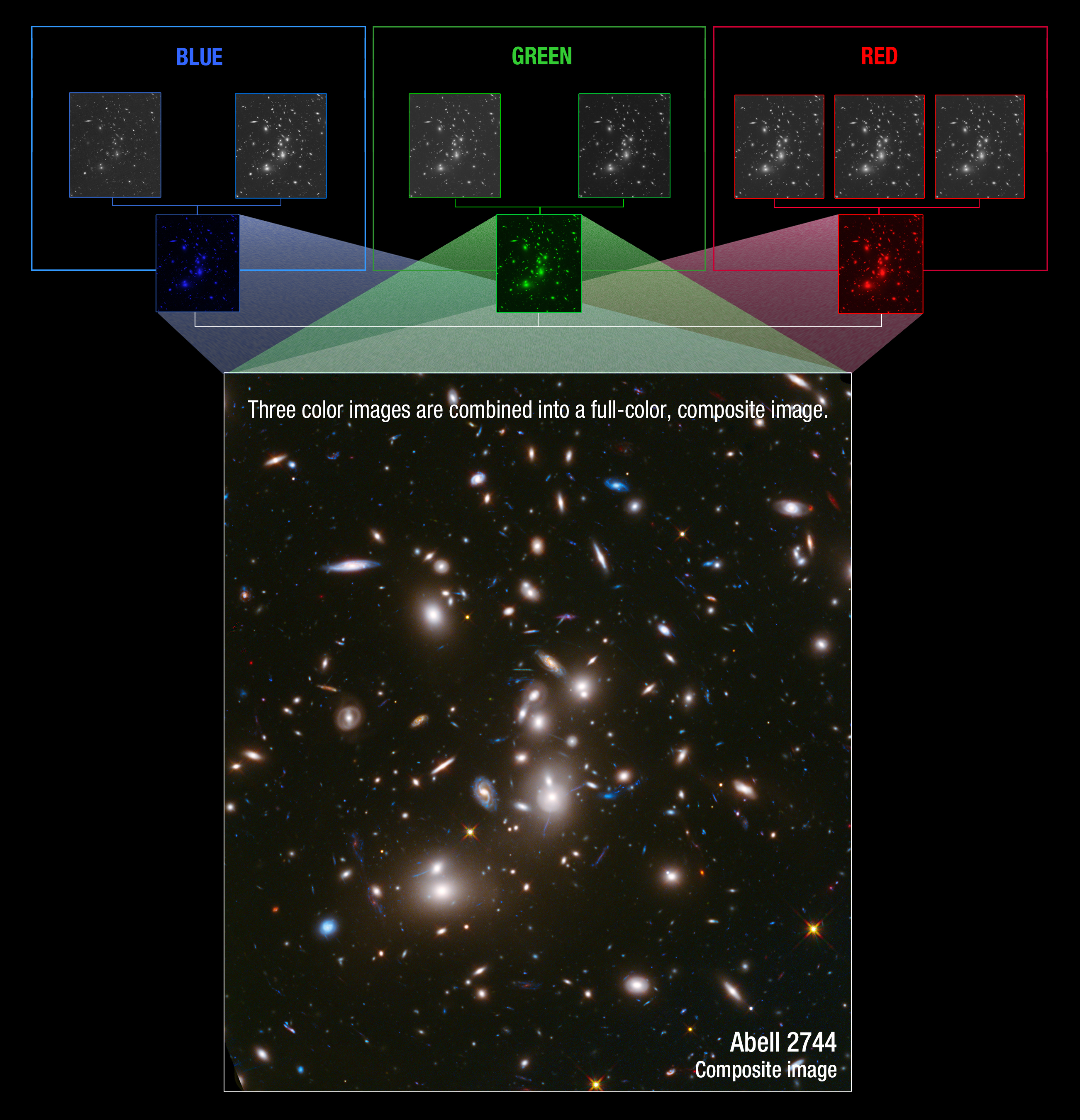

The top row shows the combined exposures through each of the seven filters as single images.  To produce the color pictures, exposures from several, selected filters from Hubble’s WFC3 and ACS were combined into one of three primary colors based on their wavelengths. The primary color images were then composited to produce the full-color image. Credit: NASA, ESA, and J. Lotz, M. Mountain, A. Koekemoer, the HFF Team, and Ann Feild (STScI).

The top row shows the combined exposures through each of the seven filters as single images. To produce the color pictures, exposures from several selected filters from Hubble’s WFC3 and ACS were combined into one of three primary colors based on their wavelengths. The primary color images were then composited to produce the full-color image. Credit: NASA, ESA, and J. Lotz, M. Mountain, A. Koekemoer, the HFF Team, and Ann Feild (STScI).

See a large collection of color Hubble images.

Amateur astronomers may want to see the raw Frontier Fields images.

There is a Facebook page  for amateur astronomical image processors to exchange information, tips and techniques, and share their work.
